Max Copies

What is Max Copies​

Max copies sets the maximum amount of copies you want to buy per uplink on a per device basis. Without setting this, the default amount applied when setting up the route-id will be used.

By default Chirpstack-HPR sets a max copies session key per device with the helium config service if not set by the user. The default max copies if not set per device reverts to the default setting set for the route-id when it was created.

How to set max copies​

From Chirpstack WebUI​

Applications/application name/

applications

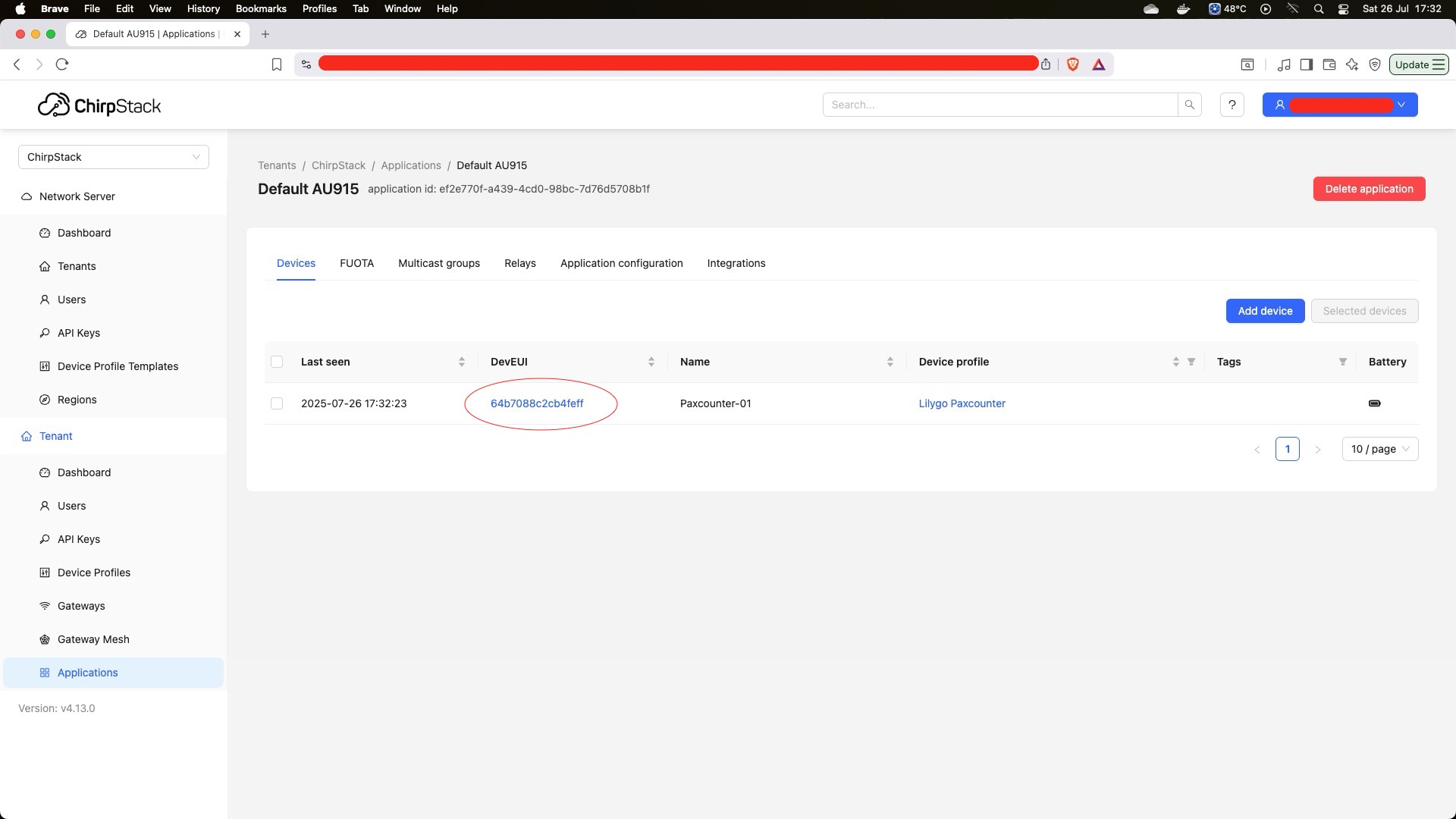

Click on the device DevEui link for the device you wish to alter or set the max copies for. applications

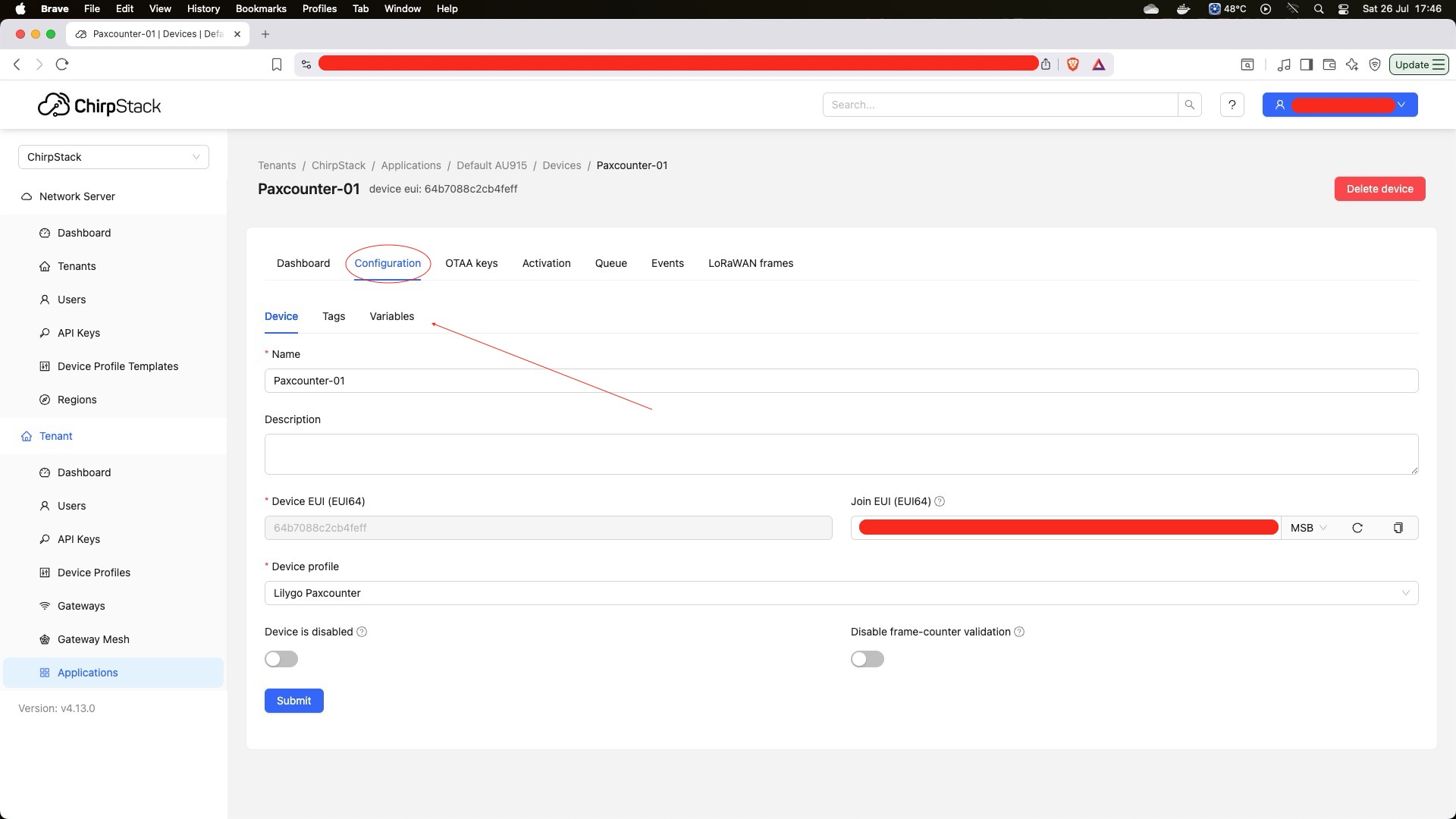

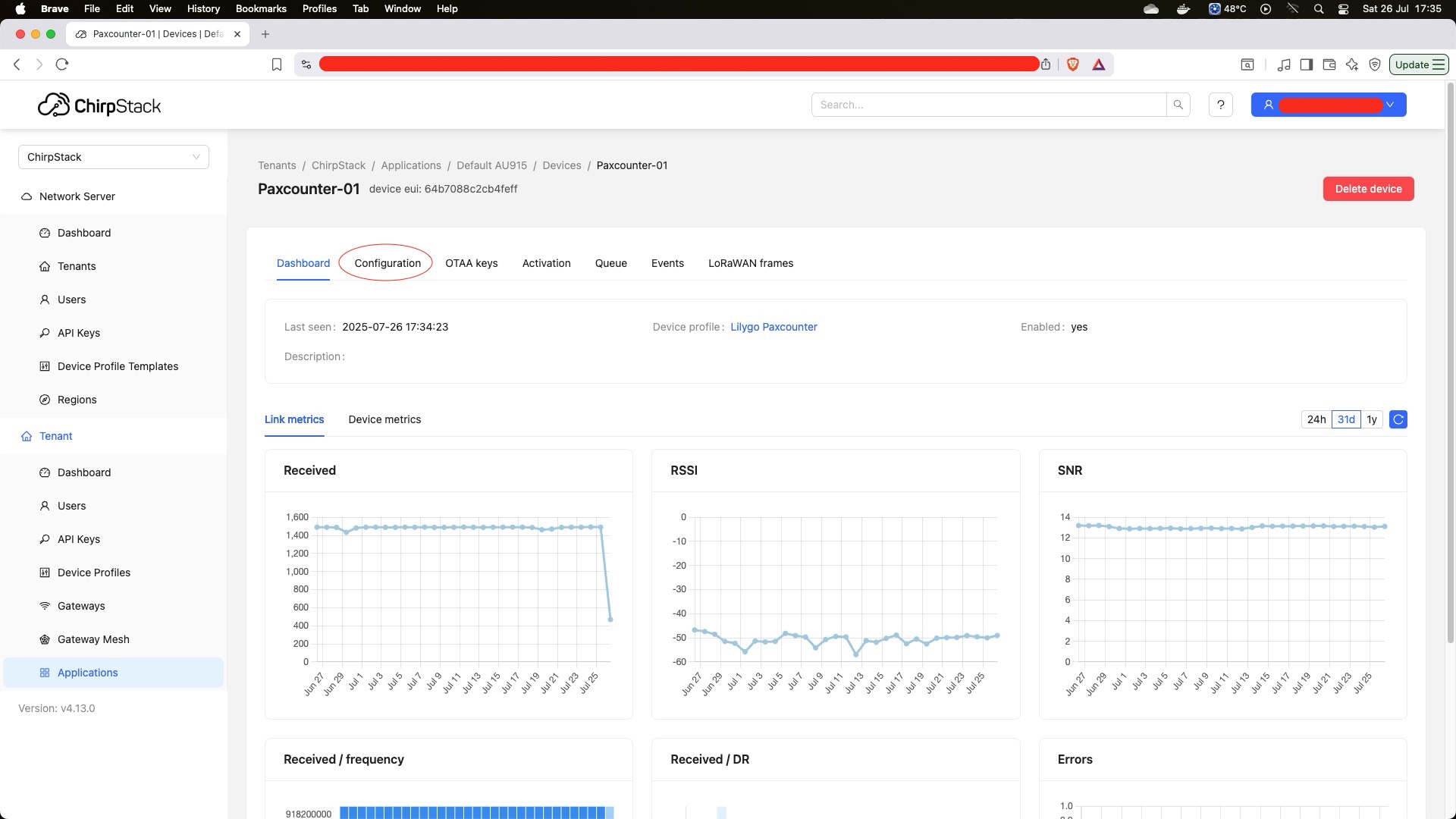

Once in the device dashboard, click on the Configuration tab. applications

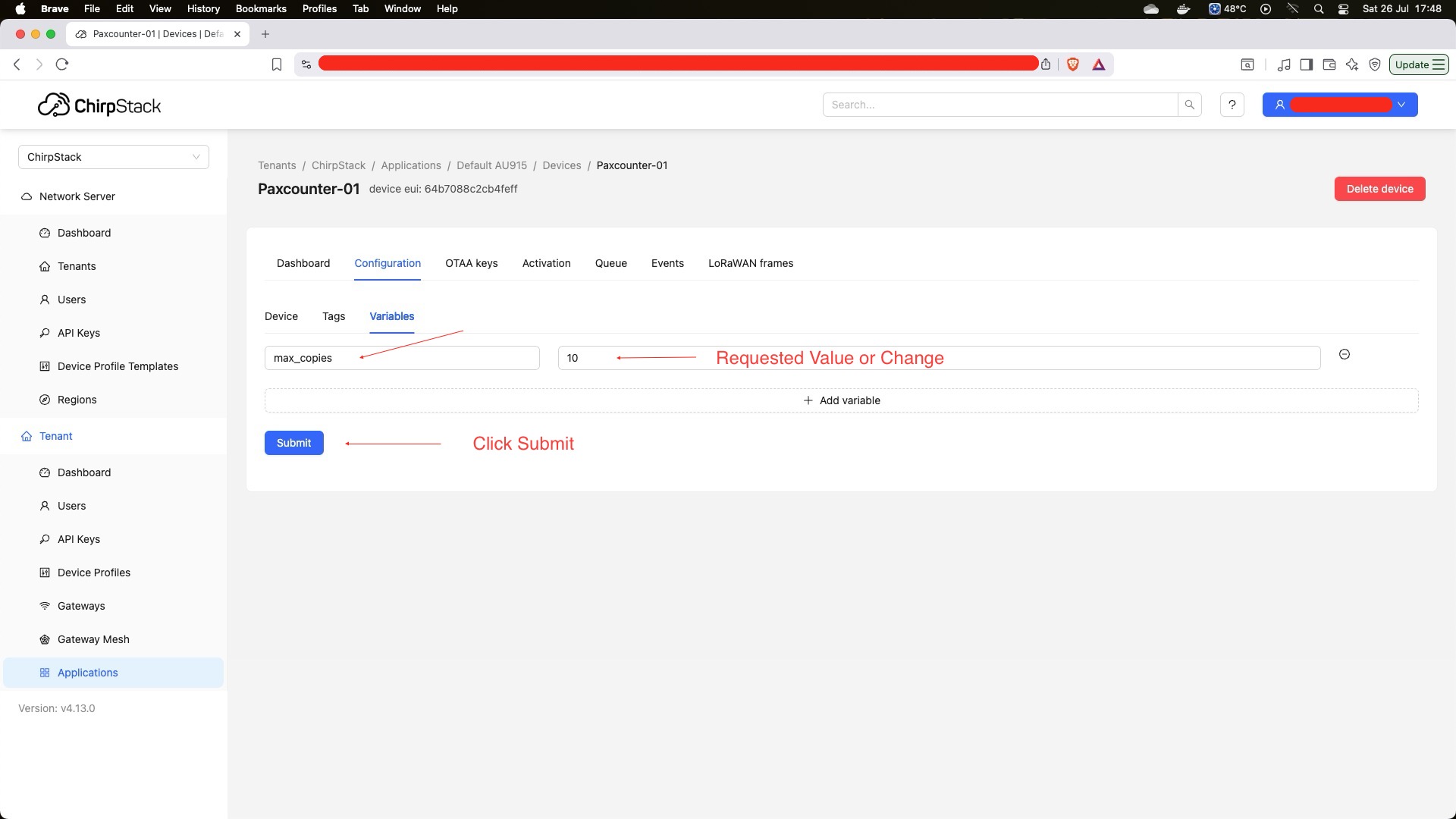

When in the Configuration tab click on the Variables tab below. If max_copies field doesn't exist click on the + Add variable and assign it the key name of max_copies followed by the amount of copies you would like values column. applications

From Chirpstack REST API​

Endpoint: /api/devices/{device.devEui} Update the given device 1234 copies
import requests

chirpstack_server = '<REST Endpoint>'
api_key = '<APIKEY>'
device_eui = '<DEVICE EUI>'
headers = {
    'Content-Type': 'application/json',
    'authorization': 'Bearer ' + api_key
}

json_body = {
    "device": {
        "devEui": device_eui,
        "name": "String",
        "description": "String",
        "applicationId": "UUID String",
        "deviceProfileId": "UUID String",
        "skipFcntCheck": False,
        "isDisabled": False,
        "variables": {
            "max_copies": "1234"  # <- Must be input as a string
        },
        "tags": {},
        "joinEui": "Hex String"
    }
}

r = requests.put(
    url=chirpstack_server + '/api/devices/' + device_eui,
    headers=headers,
    json=json_body
)

if r.status_code == 200:
    print('Success:', r.status_code)
elif r.status_code >= 400 and r.status_code < 500:
    print('Client Error:', r.status_code)
elif r.status_code > 500:
    print('Server Error:', r.status_code)
else:
    print('Other Error:', r.status_code)

From Chirpstack gRPC API​

Example Python Script, Update the given device 1234 copies
from chirpstack_api import api
import grpc

server = '<IP|HOST:PORT>'
apikey = '<APIKEY>'
device_eui = '<DEVICE EUI>'
auth_token = [('authorization', f'Bearer {apikey}')]

with grpc.insecure_channel(server) as channel:
    try:
        client = api.DeviceServiceStub(channel)
        update_device = api.UpdateDeviceRequest()
        update_device.device.application_id = 'UUID String'
        update_device.device.description = 'String'
        update_device.device.dev_eui = device_eui
        update_device.device.device_profile_id = 'UUID String'
        update_device.device.is_disabled = False
        update_device.device.join_eui = 'Hex String'
        update_device.device.name = 'String'
        update_device.device.skip_fcnt_check = False
        update_device.device.variables['max_copies'] = '1234' # <- Must be input as a string
        update_device_resp = client.Update(update_device, metadata=auth_token)
    except Exception as e:
        print(f'gRPC Update Error: {e}')

print('gRPC Update Completed!')
